Brand Name | NetSol Water |
Model Number | NWS 500 |
Usage/Application | Commercial/Industrial |
Color | Blue |
Material | FRP |
Flow Rate | 500-750 Liter Per Hour |
RO Capacity | 500 LPH |
Frequency | 50Hz |
Voltage | Single Phase 220V |
Power Source | Electric |
Number Of Membranes In Ro | 2 |
Max Water Recovery Rate | 60% |
No. of Membrane Housing | 1 |
Country Of Origin | Made In India |
Weight | 300 KG |
Dimension | 167.64 X 152.4 X 91.44 CM |
Automatic Grade | Fully Automatic |
Inlet Water Quality | 1500 TDS |
Water Source | Bore-well Water/Municipal water |
Treated Water Quality | 20-25 TDS |
Type | Water Purification for Drinking |
Number of Filtration Passes | 5 |
Treatment Stages | 5 |
Water Pump Power | 0.5hp |
Control Module | Auto Panel |
Impurities to be removed | Na, F, Mg, Ca. |
Secondary Treatment Type | Sand-carbon-micron |
Salt Capacity | 99.5% rejection |
Pressure Range | 8-10kg |
Description:-

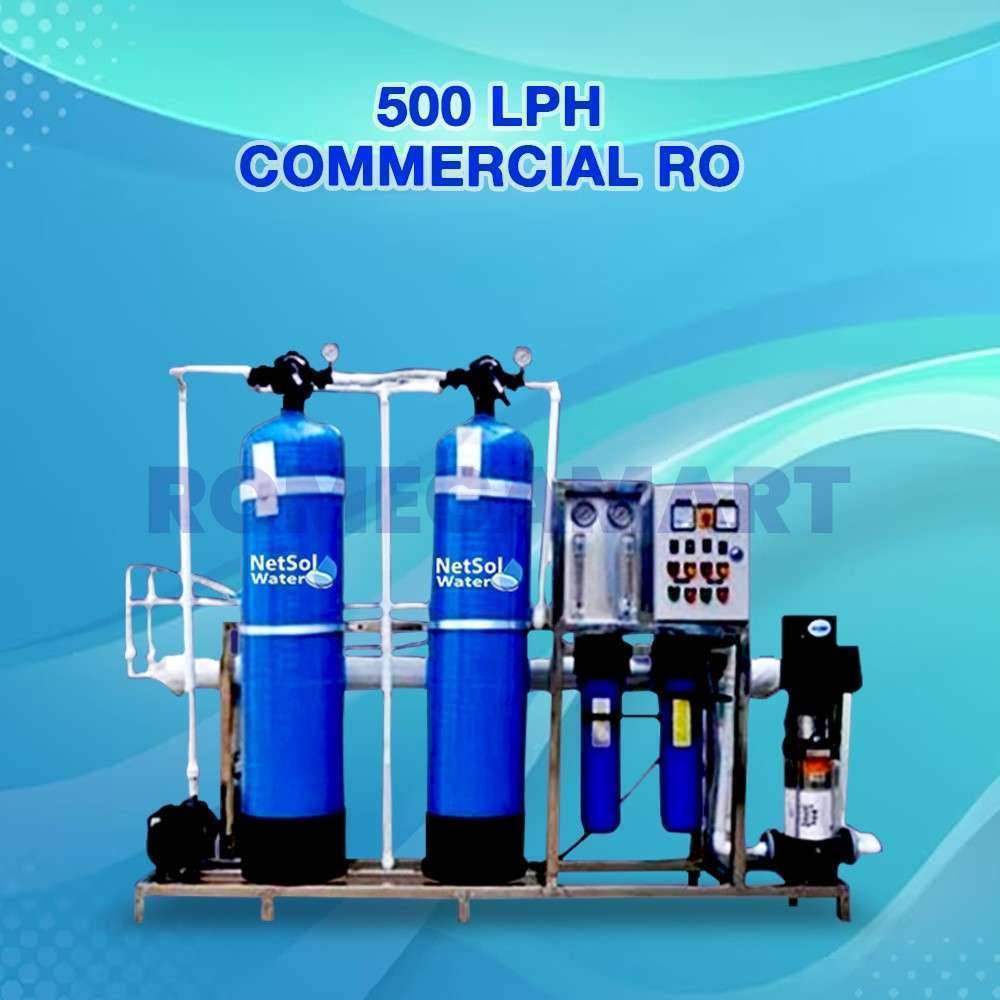

The NWS 500 LPH Commercial-Industrial RO Plant is a high-capacity water purification system designed for commercial and industrial use. This FRP (Fiber Reinforced Plastic) RO plant features multiple filtration stages, including sediment, carbon, sand, and reverse osmosis technology, ensuring thorough removal of impurities and contaminants from water. With a capacity of 500 liters per hour, this plant provides a reliable supply of clean and safe drinking water for various commercial and industrial applications. Its robust construction and advanced filtration technologies make it suitable for demanding environments where high-quality water is essential. The industrial system ensures high efficiency and reliability, making it ideal for large-scale water purification needs.
Q. Voltage ?
A. Single Phase 220V
Rating
Brand Name | NetSol Water |
Model Number | NWS 500 |
Usage/Application | Commercial/Industrial |
Color | Blue |
Material | FRP |
Flow Rate | 500-750 Liter Per Hour |
RO Capacity | 500 LPH |
Frequency | 50Hz |
Voltage | Single Phase 220V |
Power Source | Electric |
Ro Membrane | |
Number Of Membranes In Ro | 2 |
Motor Power | |
Max Water Recovery Rate | 60% |
No. of Membrane Housing | 1 |
In Box Accessories | |
Country Of Origin | Made In India |
Weight | 300 KG |
Dimension | 167.64 X 152.4 X 91.44 CM |
Warranty | |
Automatic Grade | Fully Automatic |
Inlet Water Quality | 1500 TDS |
Water Source | Bore-well Water/Municipal water |
Treated Water Quality | 20-25 TDS |
Type | Water Purification for Drinking |
Number of Filtration Passes | 5 |
Treatment Stages | 5 |
Water Pump Power | 0.5hp |
Control Module | Auto Panel |
Impurities to be removed | Na, F, Mg, Ca. |
Secondary Treatment Type | Sand-carbon-micron |
Salt Capacity | 99.5% rejection |
Pressure Range | 8-10kg |
Brand Name | Ions Robinson India |
Model Number | 500 LPH Industrial RO Plant |
Usage/Application | Industrial |
Color | Blue |
Material | FRP |
RO Capacity | 500 LPH |
Flow Rate(L/Min) | 500 Liter Per Hour |
Voltage | 230V |
Frequency | 50Hz |
RO Membrane Type | Heavy Membrane |
Max Water Recovery Rate | |
Media | Water |
Number Of Membranes In Ro | 2 |
No. of Membrane Housing | 2 |
Voltage | |
Chiller Cooling Capacity | |
Motor power | |
In Box Accessories | |
Country Of Origin | Made In India |
Weight | |
Dimension | |
Warranty |
Brand Name | |
Model Number | 500 LPH Industrial RO Plant |
Usage/Application | Industrial |
Color | Multicolor |
Material | FRP |
Flow Rate | 500 Liter Per Hour |
RO Capacity | 500 LPH |
Frequency | 50Hz |
Voltage | 220V |
Power Source | Electric |
Ro Membrane | Thin-Flim Composite (TFC) |
Number Of Membranes In Ro | 2 |
Motor Power | |
Max Water Recovery Rate | |
No. of Membrane Housing | 2 |
In Box Accessories | |
Country Of Origin | Made In India |
Weight | |
Dimension | |
Warranty | |
Operation Mode | |
Capacity (litres per hour) | 0-200 |
Media | Activated Carbon + Sand |
Brand Name | Other |
Model Number | 500 LPH Single Vessel |
Usage/Application | Industrial |
Color | Blue |
Material | FRP |
Flow Rate | 500 Liter Per Hour |
Ro Capacity | 500 LPH |
Frequency | 50Hz |
Voltage | 230V |
Power Source | Electric |
Ro Membrane | Thin-Flim Composite (TFC) |
Number Of Membranes In Ro | 2 |
No Of Membrane Housing | 2 |
Country Of Origin | Made in India |
Weight | |
Dimension |
Brand Name | Evergreen Tradelink |
Model Number | 500 LPH fully automatic dual vessel |
Usage/Application | Industrial |
Color | Blue |
Material | FRP |
Flow Rate | 500 Liter Per Hour |
Ro apacity | 500 LPH |
Frequency | 50Hz |
Voltage | 230V |
Power Source | Electric |
Ro Membrane | Thin-Flim Composite (TFC) |
Number Of Membranes In Ro | 2 |
Motor_Power | |
Max_Water_Recovery_Rate | |
No. Of Membrane Housing | 2 |
In_Box_accessories | |
Country Of Origin | Made in India |
Dimension | |
Warranty |
Brand Name | AD TECK |
Model Number | 500 LPH RO Plant |
Usage/Application | Industrial |
Color | Blue |
Material | FRP |
Flow Rate | 500 Liter Per Hour |
RO Capacity | 500 LPH |
Frequency | 50Hz |
Voltage | 220V |
Power Source | Electric |
Ro Membrane | 4040 |
Number Of Membranes In Ro | |
Motor Power | |
Max Water Recovery Rate | |
No. of Membrane Housing | |
In Box Accessories | |
Country Of Origin | Made In India |
Weight | 150 KG |
Dimension | 91.44 X 91.44 X 132.08 CM |
Warranty |
Brand Name | BLUE HAWK |
Model Number | 500 LPH Commercial RO Plant |
Usage/Application | Industrial |
Color | Blue |
Material | FRP |
Flow Rate | 500 Liter Per Hour |
RO Capacity | 500 LPH |
Frequency | 50Hz |
Voltage | 230 V |
Power Source | Electric |
Ro Membrane | TFC |
Number Of Membranes In Ro | |
Motor Power | |
Max Water Recovery Rate | 50-55 % |
No. of Membrane Housing | |
In Box Accessories | |
Country Of Origin | Made in India |
Weight | |
Dimension | |
Warranty | |
Media | Water |
Water Source | Bore Water |
Automation Grade | Automatic |
