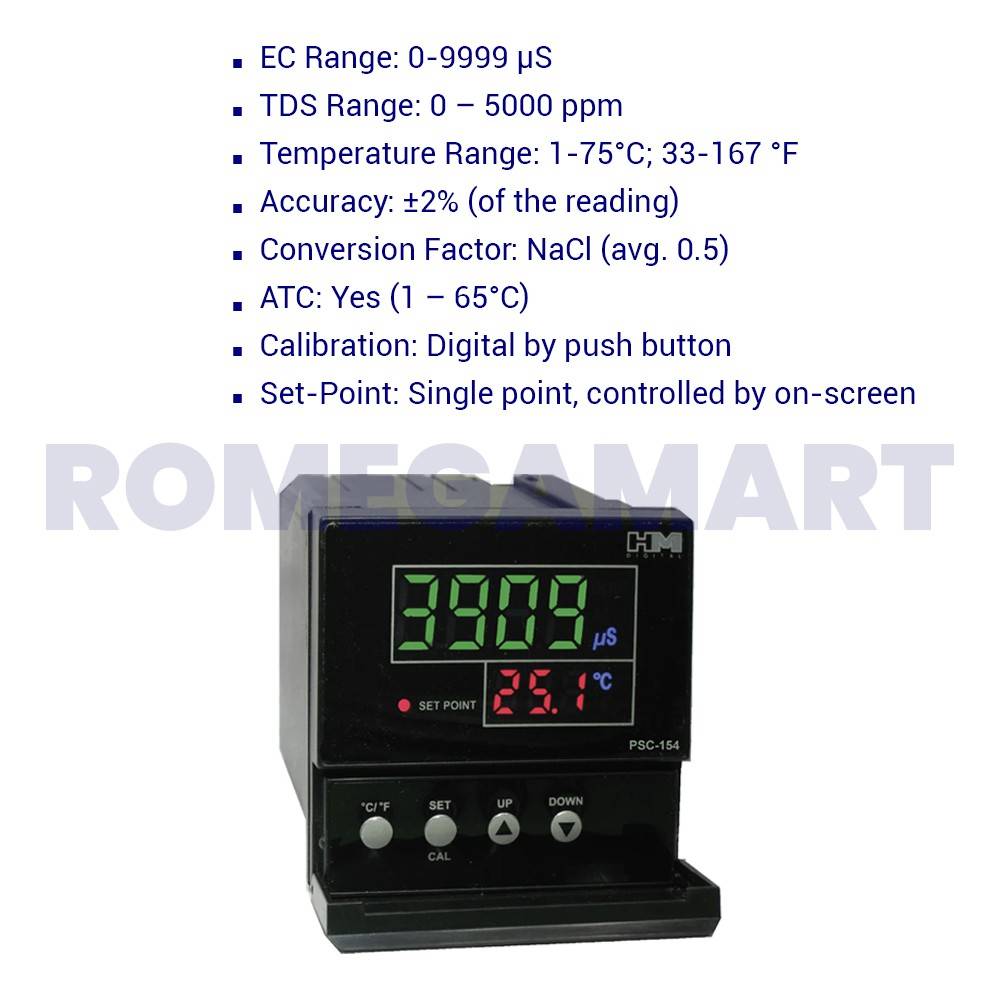

TDS/EC Controller with 4-20mA Output, PSC-154 - HM Digital India Private Limited

(0 reviews)
Product ID:
19099
Brand
HM DIGITAL
Sold by HM DIGITAL INDIA PRIVATE LIMITED

Total Price
Share
  • EC - 0-9999 µS
  • TDS Range - 0 – 5000 ppm
  • Calibration - Digital by push button
  • Display - Bright 5/8 Inch L.E.D. display
Brand Name HM Digital India Private Limited
Model Number PSC-154
Usage/Application use for controller maintains TDS/EC levels for high-output commercial systems
Color Multicolored
Country Of Origin Made In India
Dimension 7.2 x 7.2 x 11.1 cm
EC 0-9999 µS
TDS Range 0 – 5000 ppm
ATC Yes (1 – 65°C)
Calibration Digital by push button
Set Point Single point, controlled by on-screen up/down buttons (to any point within the range)
Relay Control The unit will open or close a circuit via dry contacts when the ppm/µS level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve, or other device.
Alarm Optional steady beep (set by user)
Display Bright 5/8? L.E.D. display
Probes 1/2? bushing (NPT), 3 meters (9.8 ft) shielded cable
Power Source AC 110V / AC 220V
Temperature Range 1-75°C; 33-167 °F
Resolution 0.1 µS/ppm (0-999); 1 µS/ppm (1000-9999)
Accuracy ±2% (of the reading)
Monitor Weight 241 g (8.5 oz)


Description:-


    FEATURES: Large, bright L.E.D. display 4-20mA output signal can connect to a PLC to record values. An alarm will sound if the TDS /EC level rises above the user-set level. A switch will control a device based on the set point. On-screen temperature display (C/F) Includes one sensor probe (part #SP-1-PSC) The PSC-154 by HM Digital is a high-output commercial TDS/EC controller featuring extended range, digital calibration, and on-screen temperature display. Its bright LED display and 4-20mA output ensure accurate monitoring, while the built-in ATC maintains precision across temperatures. Equipped with an alarm for exceeding set levels and a switch for device control, it offers comprehensive functionality for maintaining water quality. Includes one sensor probe for added convenience.

Other Questions

Q. Suitable For

A. Industrial

Seller
HM DIGITAL INDIA PRIVATE LIMITED
Plot No. G1-375-376, RIICO Industrial Area, Khushkhera, Alwar, Rajasthan 301707, India
(100 customer reviews)
Visit Store

Compare products














Rating

Brand Name HM Digital India Private Limited
Model Number PSC-154
Usage/Application use for controller maintains TDS/EC levels for high-output commercial systems
Color Multicolored
Material
Capacity
Material Grade
Shape
Storage Material
Country Of Origin Made In India
Weight
Dimension 7.2 x 7.2 x 11.1 cm
Warranty
Battery Life
Range
EC 0-9999 µS
ORP Range
TDS Range 0 – 5000 ppm
Sensor
Cable Length
ATC Yes (1 – 65°C)
Calibration Digital by push button
Set Point Single point, controlled by on-screen up/down buttons (to any point within the range)
Relay Control The unit will open or close a circuit via dry contacts when the ppm/µS level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve, or other device.
Alarm Optional steady beep (set by user)
Display Bright 5/8? L.E.D. display
Probes 1/2? bushing (NPT), 3 meters (9.8 ft) shielded cable
Power Source AC 110V / AC 220V
Temperature Range 1-75°C; 33-167 °F
Resolution 0.1 µS/ppm (0-999); 1 µS/ppm (1000-9999)
Accuracy ±2% (of the reading)
Monitor Weight 241 g (8.5 oz)
